Appliance Tester for testing of electrical and medical electrical devices, PRCDs

Testing in compliance with DGUV V3, BetrSichV according to

• DIN VDE 0701-0702:2008 for electrical appliances (ÖVE/ÖNORM E 8701, NEV, NEN 3140)
• IEC/EN 62353 for medical electrical devices (VDE 0751-1:2015, ÖVE/ÖNORM E 8751-1)

The new features of the new appliance tester series

• 35 % larger user interface due to a brilliant 7-inch colour touch display
• Innovative menu functions for simple and rational initial testing / new test item installation
• Smart menu functions

  • Individually customisable instrument templates (24 templates per test standard) for fast test item creation at the touch of a button
  • Auto-ID function for automatic incrementing of the Ident No. (ID) when creating new test items
  • Device data can be individually displayed via ON/OFF slider for optimised handling and use by EUPs
  • Favourites menu for direct access to frequently used submenus
• Delivery incl. calibration certificate

Further features

• PRCD testing - mobile personal protection: Complete and automatic testing of 2- and 3-pole PRCDs of type S, S+ and K.
• RCD testing - mobile sub-distribution or building power distribution: Testing of residual current devices of types AC, A, F, B, B+ offer new application possibilities.
• Extended and customer-specific visual inspection: In addition to the standard visual inspection (2 points), an extended (18 points) and customer-specific (unlimited) visual inspection with individual queries can be created.
• Management of customers and equipment in databases with unique ID no.
• Creation and assignment of individual inspection procedures and intervals (risk assessment)
• WLAN, RJ45 (LAN), USB, Bluetooth®, SD card slot - modern interfaces: The integration of the appliance tester into a network and modern interfaces enable automatic updates and form the basis for the integration of further functions and applications.
• Low operating costs, free updates via WLAN, LAN, USB
• IT network suitable - testing in isolated networks: Appliance testers usually require an earthed TN/TT network for the mains voltage supply. The new appliance testers can be used in an unearthed IT network by activating the "on/off slider".
• Measurement result with good/bad display and acoustic warning tone in case of failed test
• On-site logging via Bluetooth® printer BENNING PT 2 (optional, art. no. 10225404)

Software BENNING PC-Win ST 750-760 (optional)

• PC-Software for management, documentation and evaluation of test results
• import and export function via MS Excel®
• free software updates per download
• only in German and English language

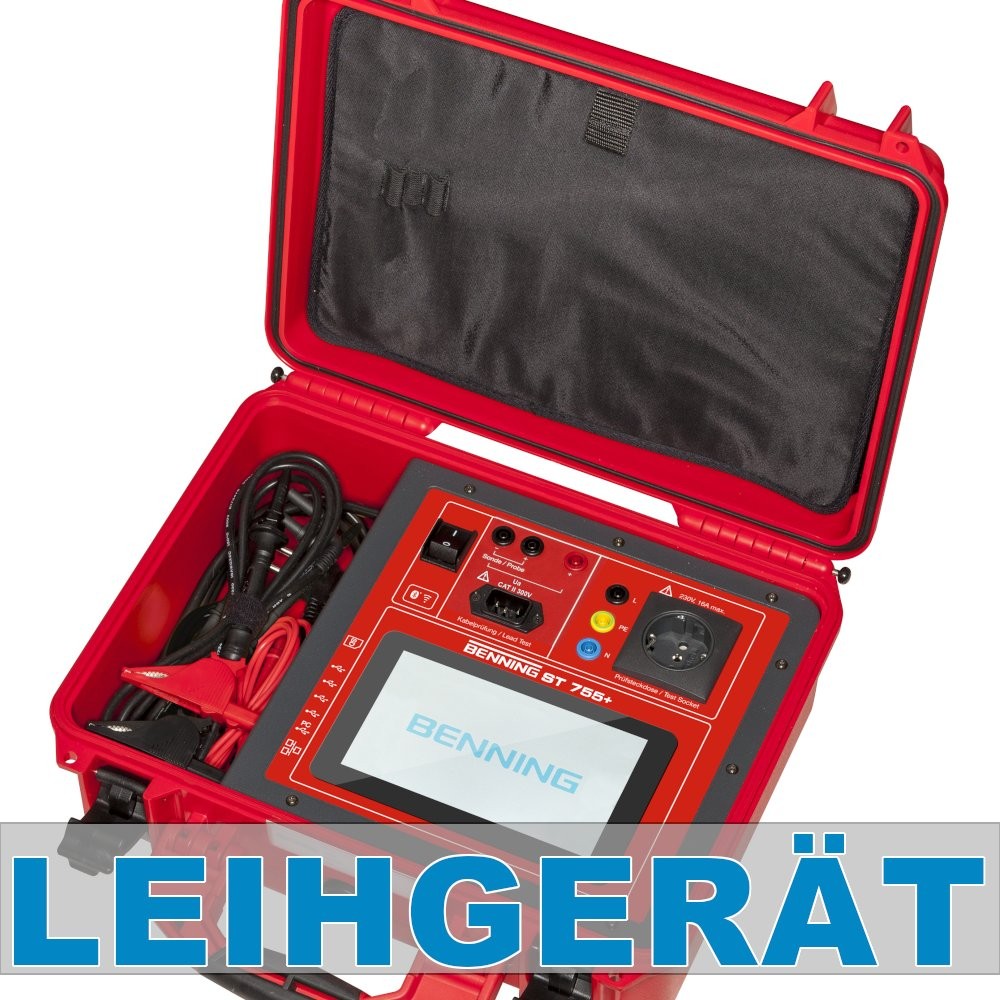

product presentation Benning ST755 + ST760

PRCD testing with Benning ST755 + ST760

Technical changes, model or color modifications, mistakes and delivery facilities without notice! No responsibility for literal mistakes.

st755 ST755+
